TP-Link AC1200 Dual-Band Wi-Fi Router
-
Enjoy smooth online gaming and video streaming with dual band 1200Mbps Wi-Fi
-
3 External Antennas Greatly Expand Wireless Coverage
-
Beamforming technology delivers highly efficient wireless connection (supported by Version 2.0 and above)
-
Lightning-Fast wired connections using four Gigabit Ethernet Ports
-
1 USB Port supports storage and file sharing
-
Easy setup and management with Tether App
SKU: Archer C50
-
Enjoy smooth online gaming and video streaming with dual band 1200Mbps Wi-Fi
-
3 External Antennas Greatly Expand Wireless Coverage
-
Beamforming technology delivers highly efficient wireless connection (supported by Version 2.0 and above)
-
Lightning-Fast wired connections using four Gigabit Ethernet Ports
-
1 USB Port supports storage and file sharing
-
Easy setup and management with Tether App
|
WIRELESS |
|
|---|---|
| Standards and Protocols | Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds | AC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range | 3 Bedroom Houses
3× Fixed Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range |
| WiFi Capacity | Medium
Dual-Band Allocate devices to different bands for optimal performance |
| Working Modes | Router Mode Access Point Mode |
|
SECURITY |
|
|---|---|
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| VPN Server | OpenVPN PPTP |
| WiFi Encryption | WEP WPA WPA2 WPA/WPA2-Enterprise (802.1x) |
|
HARDWARE |
|
|---|---|
| Processor | Single-Core CPU |

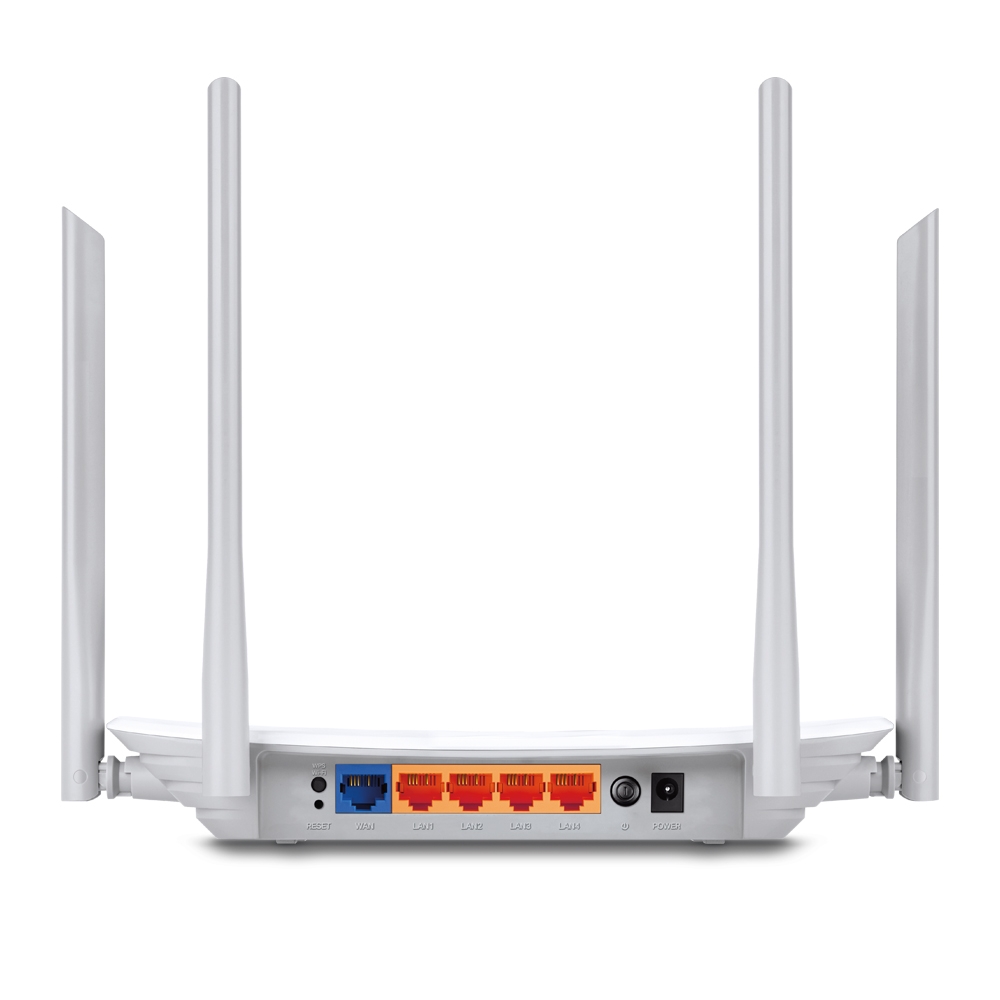

| Ethernet Ports | 1× Gigabit WAN Port 4× Gigabit LAN Ports |
| USB Support | 1× USB 2.0 Port Supported Partition Formats: NTFS, HFS+, FAT32 Supported Functions: FTP Server Media Server Samba Server |
| Buttons | WPS/Wi-Fi Button Power On/Off Button Reset Button |
| Power | 12 V ⎓ 1 A |
|
SOFTWARE |
|
|---|---|
| Protocols | IPv4 IPv6 |
| Parental Controls | URL Filtering Time Controls |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | OTA Firmware Upgrade |
| NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | NO-IP DynDNS |
| Management Features | Tether App Webpage Check Web Emulator> |
|
OTHER |
|
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|
TEST DATA |
|
|---|---|
| WiFi Transmission Power | CE EIRP: <20dBm(2.4GHz) <23dBm(5GHz) FCC: <30dBm(2.4GHz & 5GHz) |
| WiFi Reception Sensitivity | 5GHz: 11a 54Mbps: -76dBm 11ac HT20: -68dBm 11ac HT40: -65dBm 11ac HT80: -62dBm 11n HT20: -74dBm 11n HT40: -71dBm 2.4GHz: 11g 54M: -75dBm 11n HT20: -72dBm 11n HT40: -69dBm |
|
PHYSICAL |
|
|---|---|
| Dimensions (W×D×H) | 9.6 × 6.4 × 1.3 in (243 × 160.6 × 32.5mm) |
| Package Content | Wi-Fi Router Archer C1200 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
